Export data from Viz to modeler

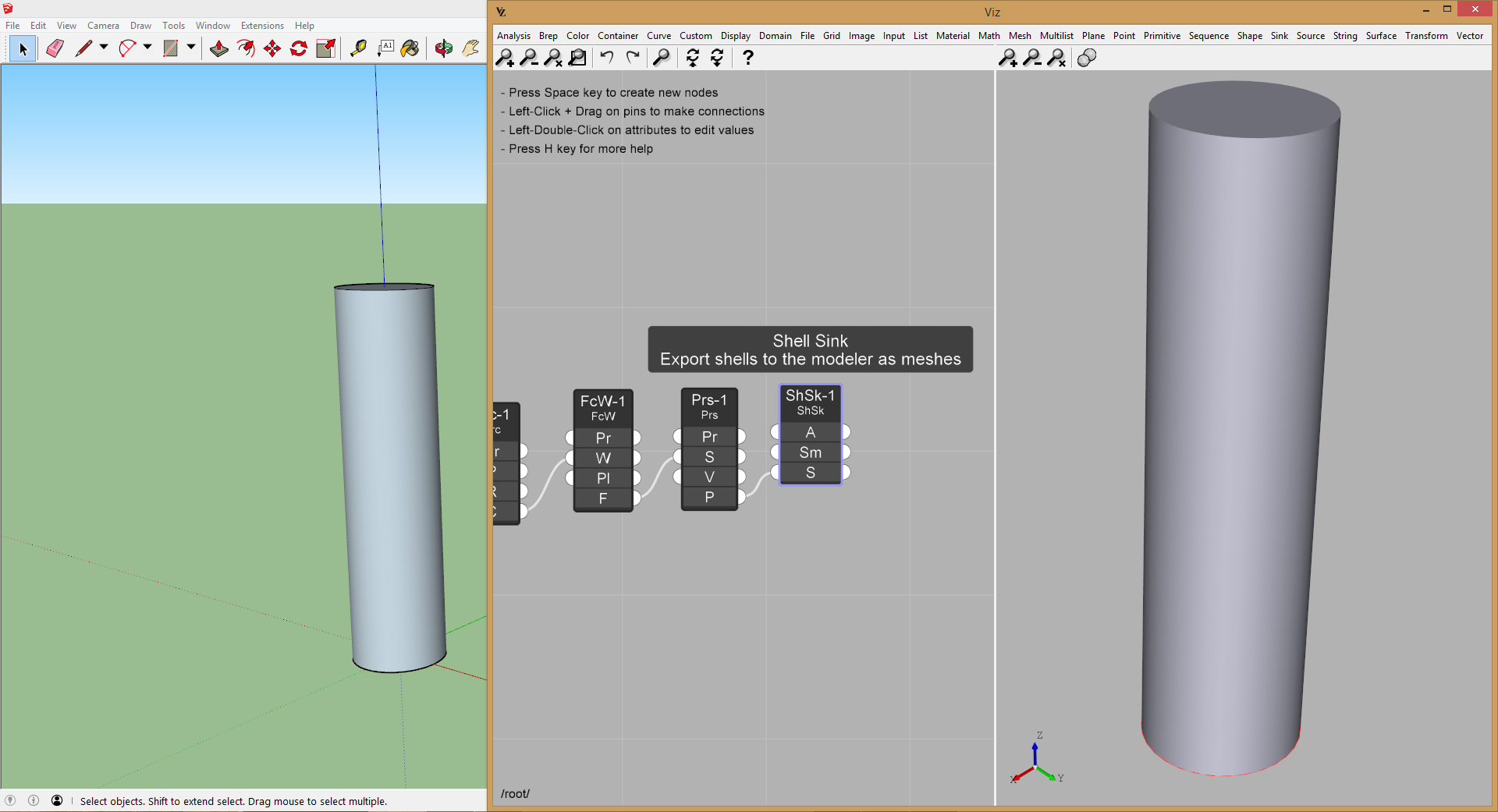

There is a special type of node, called Shell Sink that you can use to export the geometry back to the modeler:

Shell Sink

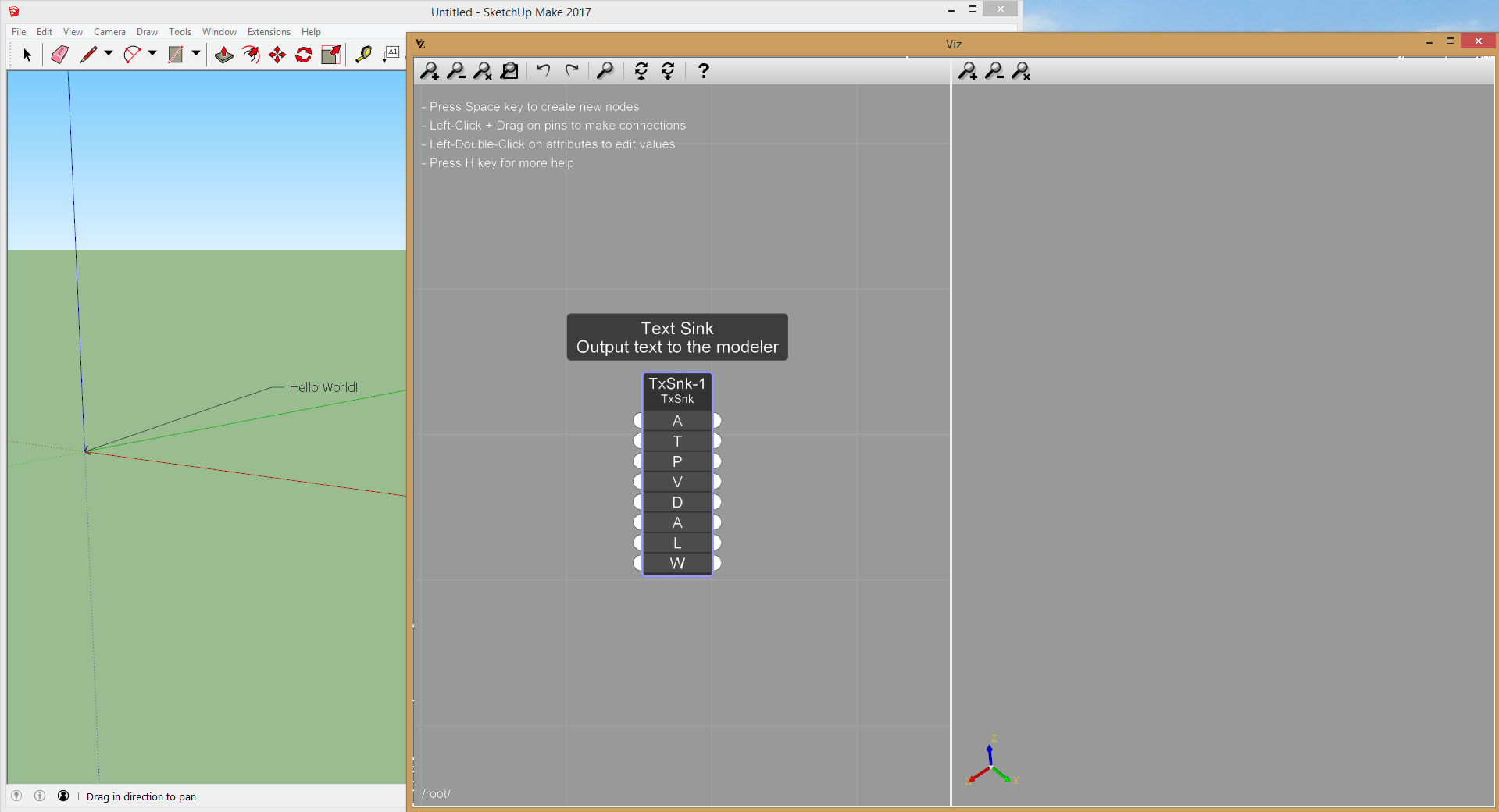

You can also use a Text Sink node to export text to the modeler:

Viz Pro Text Sink

Next: Input from modeler
